PIR-7200A Portable ILS Receiver（PIR）
一、Business
“Bright Aviation” supplies complete sets of equipment, including spare parts supply, technical consultation, after sales service, equipment fault repair, factory training, annual regular check and inspection and other business.
二、Overview
1. Portable ILS receiver, full English name: “Portable ILS/VOR Receiver” or “Portable Navaid Receiver”, referred to as“PIR”or “PNR”.
2. PIR is the RF signal analyzer of navaid equipment (Instrument Landing System (ILS), Doppler Very High Frequency Omnidirectional Range (DVOR) and Marker Beacon (MB)) of civil aviation airport, which has the functions of professional measurement and analysis of navaid equipment RF and audio signals, data recording, etc.

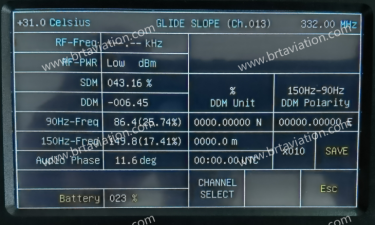

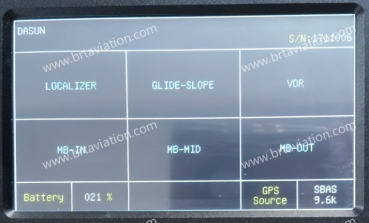

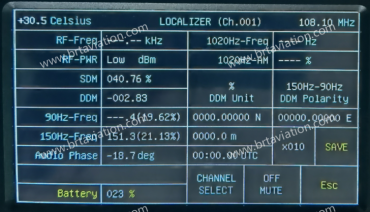

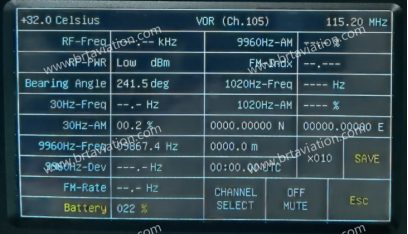

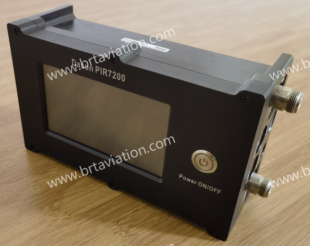

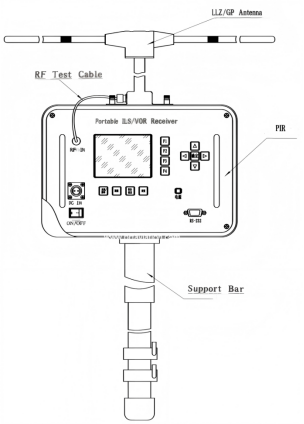

PIR appearance, as shown below.
三、Characteristic
Prameters | Localizer | Glide Path | VOR | Marker Beacon |
Frequency Range | 108.1～111.95MHz | 328.6～335.4MHz | 108.0～118MHz | 75MHz |
Channel Spacing | 50kHz | 150kHz | 50kHz | / |
Frequency Tolerance | 0.0004% | 0.0004% | 0.0004% | 0.0004% |
RF Level Range | 0～-80dBm | 12～-70dBm | 0～-80dBm | 0～-50dBm |
DDM Range | 0～40% | 0～80% | / | / |
DDM/Bearing Error | 0.05% （DDM） | 0.12% （DDM） | 0.2° （Bearing Error） | / |
SDM/Mod.Depth Range | 0～95% | 0～95% | 10～50% | 80～100% |
SDM/Mod Depth Error | 0.4% | 0.8% | 0.4% | 0.4% |
Ident /Voice Freq. Range | 300～3000Hz | / | 300～3000Hz | 300～3000Hz |
Ident /Voice Depth of Modulation range | 1～55% | / | 1～55% | / |
Ident Depth of Modulation Error | 1% | / | 1% | / |
User Interface | 3-inch color liquid crystal display with buttons for selection and parameters. | |||
Built In Battery | NiMH rechargeable battery (at least 6 hours). | |||
DC Power Input | 12～18Vdc。 | |||
AC Power Adapter | 110～220Vac±15%，45～63Hz，single phase. | |||
Input Connector | BNC female. | |||
Output Connector | DC power input connector, RS -232 connector. | |||
Size | 22 (L) * 16 (W) x 14 (D) cm. | |||
Weight | 3Kg. | |||
Antenna Type | Dipole antenna, two sections can be extended to connect. | |||
Antenna Mast Height | 1.5 meters (measuring antennas up to 2.2 meters). | |||
RF Test Cable | RG-223，2m. | |||
Temperature Range | Indoor -10°C～+50°C, Outdoor -50°C～+70°C. | |||
Relative Humidity | Indoor 0～95% (non condensing)；Outdoor 0～100% . | |||
Protection | IP54. | |||
四、Equipment List
No. | Name | Model | Qty/Unit | Description |
1 | Portable ILS Receiver | PIR-7200A | 1 Set | PIR host. |
2 | Test Antenna | / | 2 Set | Including one set of LLZ and one set of GP receiving antenna. |
3 | RF Test Cable | / | 2 Pcs | / |
4 | AC Adapter | / | 1 Pcs | / |
5 | Support Bar | / | 1 Set | / |
6 | Other Accessories | / | 1 Set | / |
