品牌: Procom Company，Denmark
型号: CXL3-1LW
描述: “Bright Aviation”is one of the agents of Denmark Procom company in China, which sells inventory.
Airport facilities and brand suppliers
- Navigation Equipment
- Communication Equipment Automatic reporting equipment Information Process System VHF Communication Radio VHF radio auxiliary equipment ADS-B Equipment Recorder Intercom System Ground Intercom System Video Surveillance System Cabinet
- Weather Equipment
- Terminal Hall Equipment
- Instruments & Meters
- Other Projects
Product
CXL3-1LW VHF Antenna
一、Business
“Bright Aviation”supplies various models of VHF antenna, including VHF antenna installation and commissioning, after-sales service, technical consultation, spare parts support, panel repair and other businesses.
二、Overview
VHF antenna, an auxiliary equipment used by VHF radio to receive and transmit radio frequency signals in the 118-137 MHz band.
三、Appearance
1、VHF Antenna

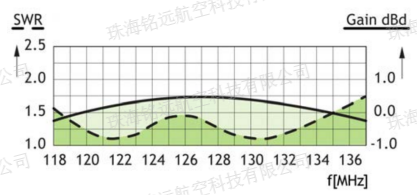

2、VSWR VS Antenna Gain Diagram
3、Horizontal Direction Radiation Diagram
4、Vertical Direction Radiation Diagram
四、Characteristics
1. Operating Frequency Band: 118-137MHz.
2. Output Power: ≤ 150W.
3. Gain: 2dBi (0dBd).
4. Bandwidth: 19MHz.
5. Impedance: 50 ohms.
6. VSWR: < 1.75.
7. Polarization Mode: Vertical Polarization.
8. Connector: N-type Female.
9. Length: 1.5m.
10. Weight: 0.8Kg.
