TX-LA-01 (L) Type Aviation Obstruction Light
一、Business
“Bright Aviation”supplies various types of aviation obstruction light and auxiliary equipment, including installation and commissioning, technical guidance, after-sales service, technical consultation，fault repair，etc.
二、Overview
1. “Aviation Obstruction Light”is used to warn the machine room around the airport runway, antenna mast (tower), super-high buildings, mobile vehicles (emergency vehicles, security vehicles, patrol vehicles, bird driving vehicles, engineering vehicles, etc.) and other obstacles for night flights.
2. It meets the requirements of the report on the inspection of special equipment for civil airports.
三、Appearance

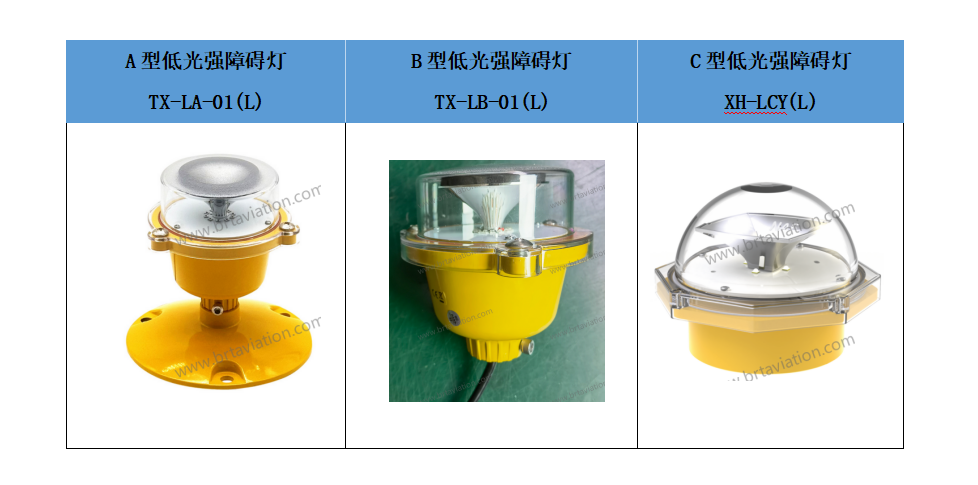

A-Type Low Intensity Obstruction Light TX-LA-01(L) | B-Type Low Intensity Obstruction Light TX-LB-01(L) | C-Type Low Intensity Obstruction Light XH-LCY(L) |
|
|  |
四、Features
1. The casing is cast of high-strength aluminum, fully sealed construction.
2. The chip mounted LED chip is adopted, featuring high brightness, low energy consumption and long lifespan.
3. Independently develop advanced optical systems, focusing angles to CAAC and ICAO requirements.
4. Built in surge protection for harsh operating environments.
5. Good heat dissipation, effective reduction in lamp volume and weight.
6. Has impact resistance, lightning protection, resistance to sunlight, rain and snow and other adverse weather, with over-current protection.
7. GPS, BeiDou wireless synchronization, 10 km wireless synchronization, remote control and other functions can be customized.
五、Performance
No. | Project | Technical Parameter | Remarks | ||
A-Type | B-Type | C-Type | |||
1 | Model | TX-LA-01(L) | TX-LB-01(L) | XH-LCY(L) | / |
2 | AC Power Supply | 220VAC±15%，47～63Hz，Single Phase | 220VAC±15%，47～63Hz，Single Phase | / | / |
3 | DC Power Supply | 18 VDC | 18 VDC | 12-15 VDC | |
4 | Power Dissipation | ≤2W | ≤2.6W | ≤1W | / |
5 | Flash Frequency | Constant Light | Constant Light | flash, 60–90 beats/min | / |
6 | Anti Surge | 5KA | 5KA | 5KA | Light fixtures built in |
7 | Light Intensity | ≥10cd/m2 | ≥32cd/m2 | ≥50cd/m2 | / |
8 | Light Source | LED | LED | LED | / |
9 | Light Source Life | ≤20年 | ≤20年 | ≤10年 | / |
10 | Glow Color | Red | Red | Yellow, Blue | / |
11 | Vertical Illumination Angle | ≥10° | ≥10° | ≥10° | / |
12 | Horizontal Illumination Angle | 360° | 360° | 360° | / |
13 | Overall Dimensions | 130（L）*126（W）*125（H）mm | 132（L）*126（W）*125（H）mm | 120（L）*120（W）*100（H）mm | / |
14 | Installation Dimensions | G3/4 Cylindrical Pipe Thread | G3/4 Cylindrical Pipe Thread | Magnet Type | / |
15 | Work Environment | -40℃～+55℃ | -40℃～+55℃ | -40℃～+55℃ | / |
16 | Weight | 1.1kg | 1.1kg | 0.5kg | |
17 | Relative Humidity | 0～100% | 0～100% | 0～100% | / |
18 | Wind Resistance | ≤240Km/h | ≤240Km/h | ≤240Km/h | / |
19 | Water Resistance Rating | IP65 | IP65 | IP66 | / |
20 | Application Scenarios | Applies to dedicated Obstruction light around airport runways (machine rooms, antenna towers (masts), radar stations, ultrahigh buildings, etc.). | Applies to dedicated Obstruction light around airport runways (machine rooms, antenna towers (masts), radar stations, ultrahigh buildings, etc.). | Applies to Obstruction light for moving vehicles in the airport's flight area (emergency vehicles, security vehicles, patrol vehicles, bird drive vehicles, engineering vehicles, etc.). | / |
六、Meeting Standards
1. CAAC, Civil Aviation Administration of China, Aviation Obstruction light, MH/T6012-2015。
2. CAAC, Civil Aviation Administration of China, Aviation Obstruction light Inspection Specification, AC-137-CA-2017-05。
3. CAAC, Civil Aviation Administration of China, Civil Airport Airfield Airfield Airfield Area Standards, MH5001-2021。
4. ICAO Annex 10.
七、Auxiliary Equipment
（1）Aviation obstruction light controller
1. Used to control and monitor the operating status of various types of Aviation Obstruction light.
2. With small size, light weight, corrosion resistance and other characteristics.
2. Wireless remote control technology, control distance ≥ 10 km.
3. The user sets the operating status of Obstruction light, as well as remotely monitors and controls them, via the controller's liquid-crystal display touchscreen interface.
4. Appearance, as shown below.
5.Performance.
No. | Project | Technical Parameter | Remarks |
1 | Model | CTR-103A | / |
2 | AC Power Supply | 220VAC±15%，47～63Hz，Single Phase | / |
3 | DC Power Supply | 18 VDC | / |
4 | Power Consumption | ≤4W | / |
5 | Anti Surge Protection Class | 5KA | / |
6 | Control Mode | Wireless data radio station or 5G wireless bridge | / |
7 | Touch Screen Size | ≥7 inch | / |
8 | Native Alarm | Buzzer+screen warning prompt+history information storage | / |
9 | Control Distance | Outdoor unobstructed intervisibility≥1000m | / |
10 | Shell Material | 304 Stainless steel | / |
11 | Service Life | ≥10 year | / |
12 | Overall Dimensions | 43（L）*36（W）*14（H）cm | / |
13 | Installation Dimensions | M8 Expansion Bolt | / |
14 | Working Temperature | -40℃～+55℃ | / |
15 | Weight | 6Kg | / |
16 | Relative Humidity | 0～100% | / |
17 | Wind Resistance | ≤240Km/h | / |
18 | Protection Class | IP65 | / |
（2）Aviation obstruction light mount
1. Fitted with various application scenarios for different specifications and models of Aviation Obstruction light.
2. Appearance，as shown below.
Type：ZJ-102A | Type：ZJ-102B | Type：ZJ-102C |
| |  |
