L45W33H30 Shelter-Shelter-Zhuhai Bright Aviation Inc.-Airport facilities and brand suppliers

一、Business

“Bright Aviation” supplies various types shelter, including installation and commissioning, technical guidance, after-sales service and other businesses.

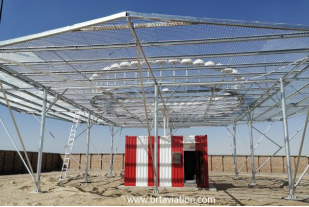

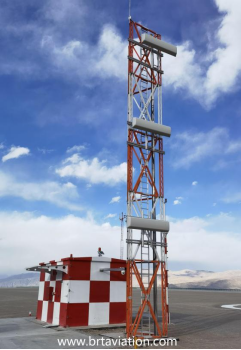

Shelter appearance，as shown below.

二、Overview

1. Shelter is of steel framed structure or aluminum alloy structure, and is used in the working rooms of equipment such as communication, navigation, weather, radar, etc. of civil aviation airports, and is also suitable for other application scenarios.

2. Cabin interior is configured with: low voltage power distribution system, bridge system, lighting system (including emergency lighting, switches, sockets), air conditioning system, fire fighting system, ground wire bar system, reserved feeder window, ventilation window, etc.

3. Canopy mounted on top of the gondola security door, canopy dimensions: 1.5 (L) * 0.8 (W) m.

4. The outer surface of the shelter is sprayed with a red and white 1 meter square paint checker, the paint surface is smooth and smooth, with bright colors. The inner surface of the shelter is sprayed with white paint, which is beautiful.

5. All metal materials in the shelter were treated for corrosion protection, with steel parts painted and aluminum parts anodized.

三、Appearance

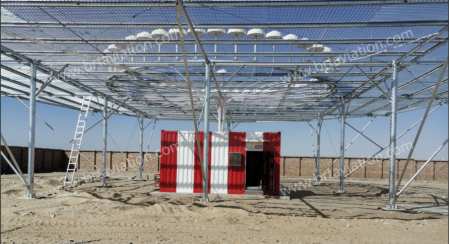

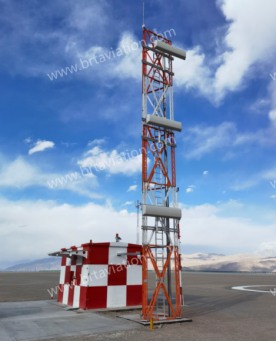

DVOR Station Shelter	ILS Station Shelter

四、Characteristic

1. Plate: Sandwich heat shield, light weight and good rigidity.

2. The floor loading is≥1200KG/m, and the top loading of the shelter is≥250KG/m.

3. Base plate: In addition to ensuring load-bearing strength, anti-static floor is laid, and built-in steel structure ensures installation of main equipment.

4. Water resistance: 1 kg/cm2 of water pressure can be withstood.

5. Fire resistance: The shelter panels have self extinguishing fire retardant properties.

6. Wind resistance: can withstand wind speeds of 45 m/s without damage.

7. Anticorrosion: Hot dip zinc plating and rust prevention treatment for all steel, with the amount of zinc plating no less than 550g/m2. Wall panels, top and outer panels are made of aluminum, and other connectors are aluminum sections or stainless steel connectors.

8. Shockproof: Resistance to an earthquake of magnitude 8 on the Richter scale.

9. Thermal insulation: the thermal conductivity of its wall panel and roof panel structure is less than 0.035 Kcal/mph °C.

10. Impact resistance: 75 mm in diameter, weighing 1 kg, with a hemispherical steel cylinder at one end falling from a height of 10 m without puncturing the cabin.

11. Service life ≥ 30 years.

五、Configuration

1、Shelter Basic Facilities Configuration List(Required)

No.	Name	Model	Qty/Unit	Description
1	Cabin	/	1 Set	Model: L45W33H30. Size: 4.5 (L) * 3.3 (W) * 3.0 (H) m.
2	Burglar Proof Door	/	1 Set	Size: 1 (W) * 2.1 (H) m.
3	Canopy	/	1 Set	Shelterable fire control box. Size: 1.5（L）* 0.8（W）m。
4	Anti Static Floor	/	1 Set	Size: 60 (L) * 60 (W) * 3.5 (H) cm, bracket height 20 cm.
5	Overhead Stainless Steel Mesh Bridge	/	1 Set	Overhead stainless steel mesh bridge, 20 (W) * 10 (H) cm.
6	Metal Trunking	/	1 Set	With cover.
7	Roof Light	/	2 Set	LED lighting, white light, 10W.
8	Emergency Lighting	/	2 Set	LED lighting, 3W.
9	Receptacle, Switch	/	1 Set	Lighting equipment switches, air conditioning and power sockets.
10	Climb Stairs To Roof	/	1 Set	/
11	Fire Alarm Controller With Outdoor	/	1 Set	Protection box. Size: 60 (L) * 20 (W) * 70 (H) cm.
12	Fire Detector	/	1 Set	/
13	Emergency Start Stop Button	/	1 Set	/
14	Fire Audible And Visual Alarm	/	1 Set	/
15	Gas Spray Release Indicator	/	1 Set	/
16	Manual, Automatic Transfer Switch	/	1 Set	/
17	Sidewall Exhaust Fan	/	1 Set	/
18	Earthing Terminal Box	/	1 Set	/
19	Cabinet Type Gas Extinguishing Apparatus	/	1 Set	Heptafluoropropane fire extinguisher, cabinet type, 20 years of service, 40 kg, Size: 50 (L) * 45 (W) * 135 (H) cm.
20	Portable Dry Powder Fire Extinguisher	/	2 Set	Portable dry powder fire extinguisher, 4 kg.

2、Shelter Auxiliary Facilities Configuration List (Optional)

No.	Name	Model	Qty/Unit	Description
1	Air Conditioning	/	2 Set	Wall mounted, 1.5P, refrigeration heating air conditioner, self starting function after power failure.
2	AC Power Automatic Switching Distribution Cabinet	/	1 Set	Two way 380VAC AC input power supply automatic switching power distribution cabinet. Size：40 (L) * 60 (W) * 14 (D) cm.
3	Single Phase Power Distribution Box	/	1 Set	Single phase AC power distribution box, 6 air switches. Size：40 (L) * 40 (W) * 14 (D) cm.
4	Office Desk	/	2 Set	Size：120 (L) * 60 (W) * 73 (D) cm.
5	Chair	/	2 Set	/
6	File Cabinet	/	2 Set	Four door filing cabinet. Size：180 (L) * 85 (W) * 39 (D) cm.
7	Patch Cord Bank	/	2 Set	3-port, 1.8 m wire, international general purpose socket.
8	Cabinets	/	1 Set	Standard 38U cabinet. Size：180 (H) * 60 (W) * 60 (D) cm.

六、Environmental

1. Temperature: Indoor -10°C～+50°C, Outdoor -50°C～+70°C.

2. Relative humidity: Indoor 0～95% (non condensing)；Outdoor 0～100% .

3. Altitude: 0～4500m MSL.

4. Work cycle: continuous unattended.

5. Wind conditions: Operates normally with wind speeds up to 161 km/h and 3 cm thick with ice in the shelter.

6. Dust proof rating: IP55.

七、Model Selection

No.	Model	Shelter Size	Net Weight	Configuration
1	L30W33H30	3.0 (L) * 3.3 (W) * 3.0 (H) m	3000 Kg	Standard
2	L45W33H30	4.5 (L) * 3.3 (W) * 3.0 (H) m	5000 Kg	Standard
3	L60W33H30	6.0 (L) * 3.3 (W) * 3.0 (H) m	6500 Kg	Standard
4	Custom Built To Customer Requirements.
