VHF Remote Controller

Brand: /
Model: RCU-701A (China/Bright Aviation), RCU-708A (China/Bright Aviation)，RCU-704IP (China/Bright Aviation)，RCU-708IP (China/Bright Aviation), GB4000V (Germany/R&S), T6MC (UK/PAE), S4-IP (UK/PAE), AK100/S (Italy/OTE).
Description: “Bright Aviation” sells various models of VHF remote controller.
  • Specifications
  • Download

一、Business

“Bright Aviation”supplies complete sets of equipment, including spare parts supply, installation and commissioning, panel repair, after-sales service, technical consultation, spare parts support and other businesses.



二、Product Overview

1. VHF remote controller is used for audio signal processing and control.

2. After receiving the voice signal output by VHF radio, the remote controller will analyze, process and amplify it, and then the speaker will output the audio monitoring signal.

3. The communication mode between remote controller and VHF radio is E&M analog signal and VoIP digital signal.

4. The E&M analog signal of the remote controller consists of four pairs of signals, namely: one pair of transmit (TX), one pair of receive (RX), one pair of mute (SQ), and one pair of push to talk (PPT) signals.

5. The protocol data exchange between E&M analog signals and VHF radio must be carried out through special optical terminals (communication equipment), and then long-distance communication transmission can be carried out through optical cables or IP protocols.

6. Long distance communication between VoIP digital signal and VHF radio is realized through IP networking mode.



三、Appearance and Characteristics


RCU-701A Remote Controller


1. VHF Radio Controlled Number: 1.

2. Communication Mode: 1-way E&M analog signal.

3. Microphone Type: capacitive.

4. Speaker Output: 3W.

5. DC Input: 15～30Vdc.

6. Temperature: Indoor -10 ° C～+50 ° C.

7. Relative Humidity: 0～95% indoor (non condensing).

8. Size：14 (L) * 13 (W) * 14 (D) cm, 3U chassis.


RCU-708A Remote Controller


1. VHF Radio Controlled Number: 8.

2. Communication Mode: 8-way E&M analog signal.

3. Microphone Type: capacitive.

4. Speaker Output: 3W.

5. DC Input: 15～30Vdc.

6. AC power supply: 110V～220Vac ± 10%, 47～63 Hz, single-phase.

7. Temperature: Indoor -10 ° C～+50 ° C.

8. Relative Humidity: 0～95% indoor (non condensing).

9. Size：28 (L) * 13 (W) * 18 (D) cm, 3U chassis.

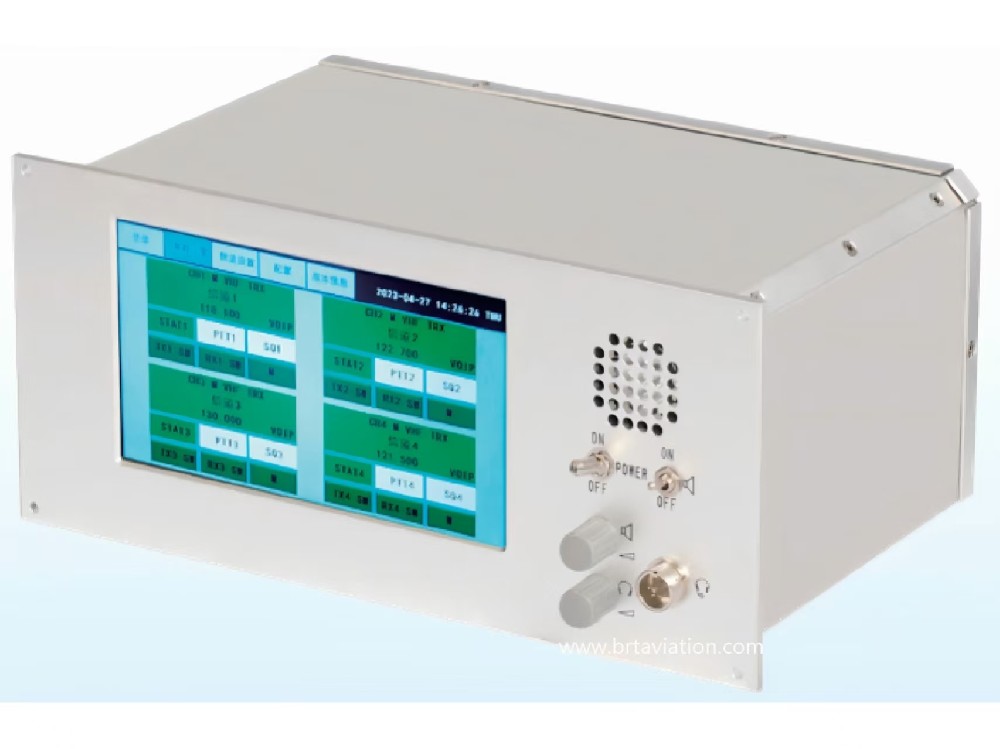

RCU-704IP Remote Controller


1. VHF Radio Controlled Number: 1-4 (4 at most).

2. Communication Mode: 2-way E&M analog and 2-way VoIP digital signals, supporting the simultaneous use of 4-way signals.

3. It supports remote monitoring of radio station working status and setting of radio station parameters.

4. Microphone Type: dynamic.

5. DC Input: 15～32Vdc.

6. Speaker Output: 5W.

7. Temperature: Indoor -10 ° C～+50 ° C.

8. Relative Humidity: 0～95% indoor (non condensing).


RCU-708IP Remote Controller


1. VHF Radio Controlled Number: 1-8 (8 at most).

2. Communication Mode: 2-way E&M analog and 2-way VoIP digital signals, supporting the simultaneous use of 4-way signals.

3. It supports remote monitoring of radio station working status and setting of radio station parameters.

4. Microphone Type: dynamic.

5. DC Input: 15～32Vdc.

6. Speaker Output: 5W.

7. Temperature: Indoor -10 ° C～+50 ° C.

8. Relative Humidity: 0～95% indoor (non condensing).


GB4000V Remote Controller

image.png     image.png

1. VHF Radio Controlled Number: 1.

2. Communication Mode: 1-way E&M analog and 1-way VoIP digital signals, supporting the simultaneous use of 2-way signals.

3.Microphone Type: dynamic.

4. DC Input: 19～33Vdc.

5. Speaker Output: 5W.

6. Temperature: Indoor -10 ° C～+50 ° C.

7. Relative Humidity: 0～95% indoor (non condensing).


T6MC Remote Controller




1. VHF Radio Controlled Number: 1.

2. Communication Mode: 1-way E&M analog signal.

3.Microphone Type: dynamic.

4. DC Input: 15～30Vdc.

5. Speaker Output: 8W.

6. Temperature: Indoor -10 ° C～+50 ° C.

7. Relative Humidity: 0%～95% indoor (non condensing).


S4-IP Remote Controller




1. VHF Radio Controlled Number: 1-4 (4 at most).

2. Communication Mode: 4-way VoIP digital signals,.

3.Microphone Type: dynamic.

4. DC Input: 12Vdc.

5. Speaker Output: 5W.

6. Temperature: Indoor 0 ° C～+45 ° C.

7. Relative Humidity: 5%～90% indoor (non condensing).


AK100/S Remote Controller


1. VHF Radio Controlled Number: 1.

2. Communication Mode: 1-way E&M analog signal.

3. Microphone Type: capacitive.

4. DC Input: 12～24Vdc.

5. Speaker Output: 5W.

6. Temperature: Indoor -10 ° C～+50 ° C.

7. Relative Humidity: 0～95% indoor (non condensing).
