品牌: Bright Aviatio，China
型号: AXA-NMNM，AXA-NFNF，AXA-NMNF
描述: “Bright Aviation” sells AXA-NMNM，AXA-NFNF，AXA-NMNF RF Connectors from in stock.
Airport facilities and brand suppliers
- Navigation Equipment
- Communication Equipment Automatic reporting equipment Information Process System VHF Communication Radio VHF radio auxiliary equipment ADS-B Equipment Recorder Intercom System Ground Intercom System Video Surveillance System Cabinet
- Weather Equipment
- Terminal Hall Equipment
- Instruments & Meters
- Other Projects
Product
RF Connector
一、Business
“Bright Aviation” provides product supply, after-sales service, technical consultation, spare parts support and other services.
二、 Overview
1. RF connector is a RF conversion connector that connects RF cables of various specifications and models.
2. The RF connectors in the list are internationally recognized and commonly used standard models, which can be used all over the world.

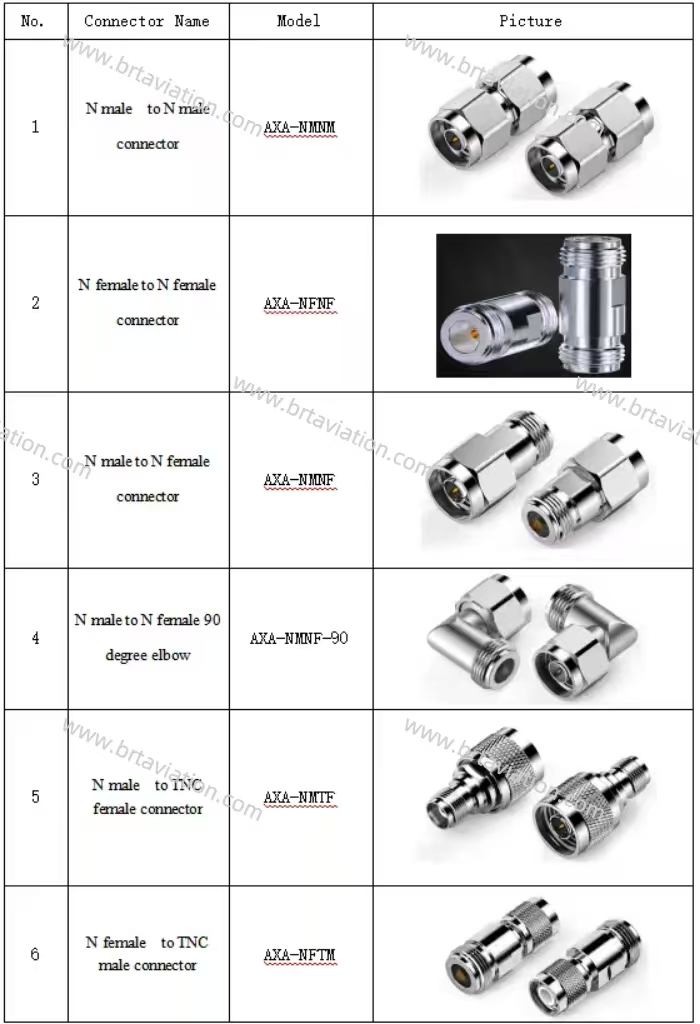

3. RF connectors commonly used by airport ATC equipment are shown in the following table.

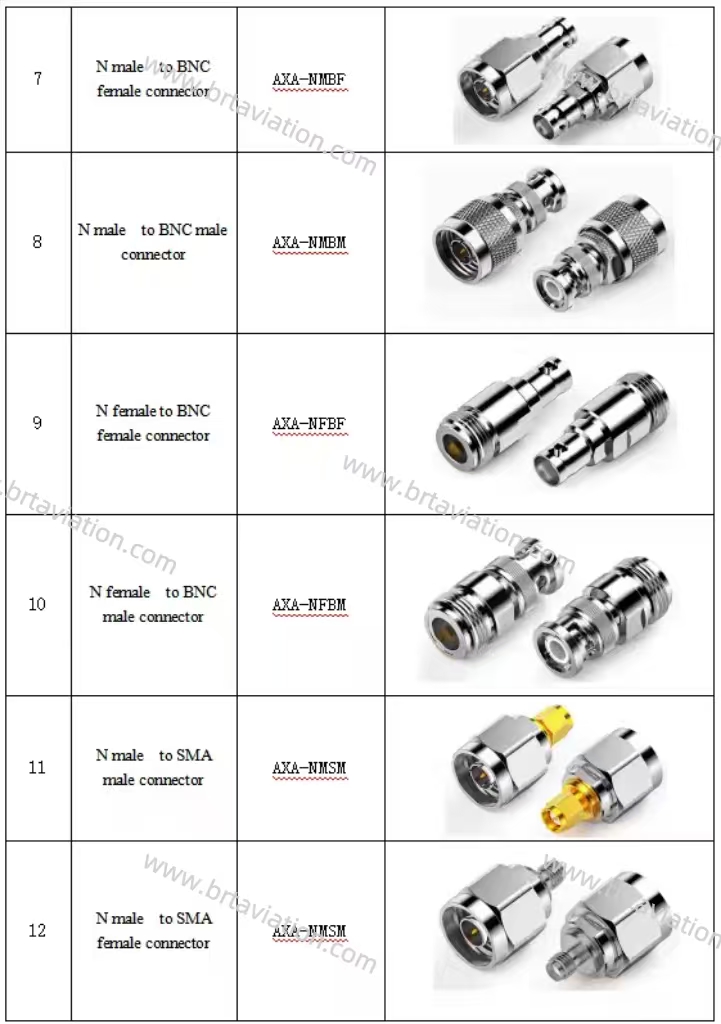

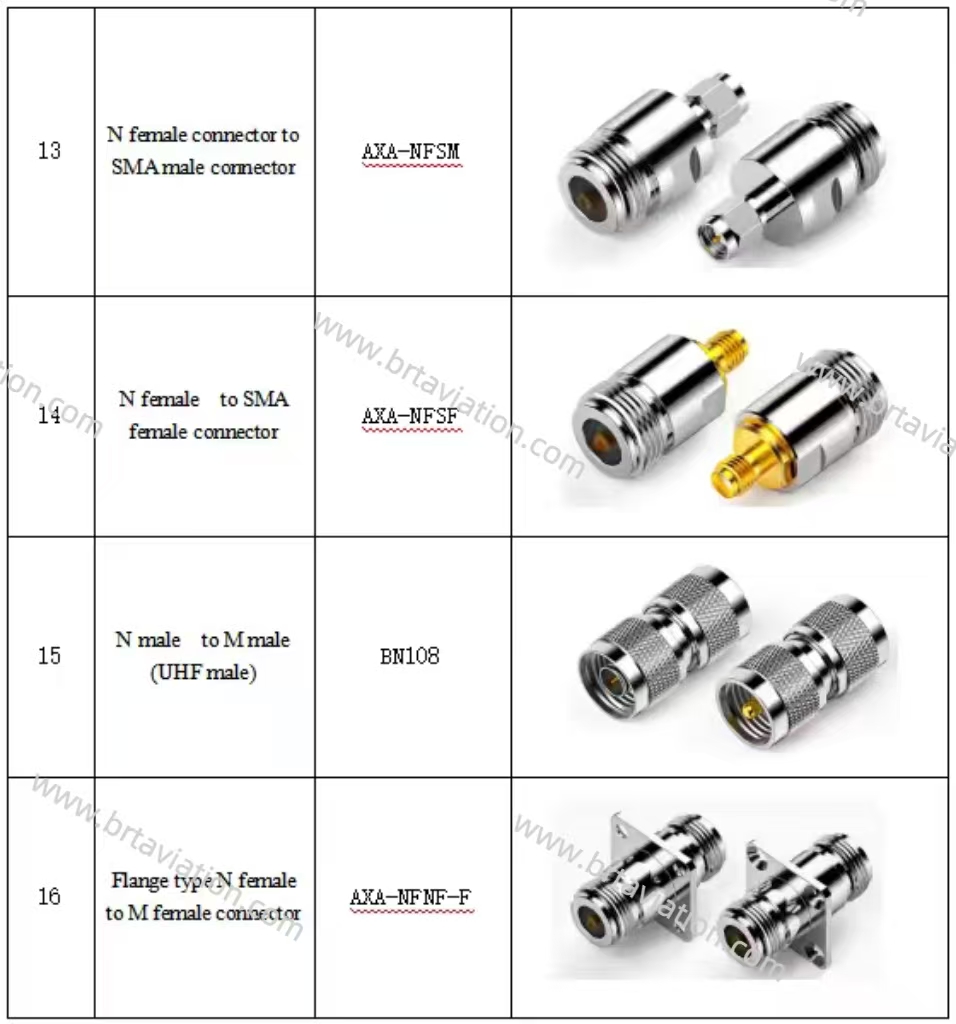

三、Model and Picture
四、Characteristics
1. Operating Frequency: 0-6GHz.
2. Characteristic Impedance: 50 ohms.
3. Voltage Standing Wave Ratio（VSWR）: ≤ 1.25.
4. Joint Material: nickel plated brass.
5. Inner Conductor (needle): gold-plated.
6. Mechanical Durability: >1000 times.
7. Operating Temperature: -50 °C ～ +125 °C.
8. Relative Humidity: 0 ～ 95%.
