品牌: Kathrein Company，Germany
型号: K552031（601813）
描述: “Bright Aviation” is one of the agents of German Katherin company in China, which sells inventory.
Airport facilities and brand suppliers
- Navigation Equipment
- Communication Equipment Automatic reporting equipment Information Process System VHF Communication Radio VHF radio auxiliary equipment ADS-B Equipment Recorder Intercom System Ground Intercom System Video Surveillance System Cabinet
- Weather Equipment
- Terminal Hall Equipment
- Instruments & Meters
- Other Projects
Product
K552031 VHF antenna
一、Business
“Bright Aviation”supplies various models of VHF antenna, including VHF antenna installation and commissioning, after-sales service, technical consultation, spare parts support, panel repair and other businesses.
三、Appearance
1、VHF Antenna

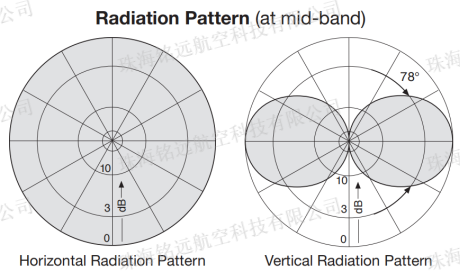

2、Horizontal and Vertical Plane Waveform
四、Overview
1. Frequency Range: 118-137MHz.
2. Output Power: ≤1000 W.
3. Gain: 0dBd.
4. Impedance: 50 ohms.
5. VSWR: ≤ 2.0.
6. Polarization Mode: vertical.
7. Connector: N-type female.
8. Length: 1.4 m.
9. Weight: 6.6Kg.
五、Case
In December 2021, “Bright Aviation” installed VHF antenna on DVOR53D equipment antenna reflection network at Taxian Airport, Xinjiang Province, China, as shown in the figure below.
