ASCS-MY16A Automatic Message Transfer System-Automatic reporting equipment-Zhuhai Bright Aviation Inc.-Airport facilities and brand suppliers

一、Business

“Bright Aviation” Supplies Complete Sets Of Equipment, Including Installation And Commissioning, Technical Guidance, Technical Consultation, Factory Training, After-Sales Service, Spare Parts Support, Equipment Fault Repair And Other Turnkey Projects.

二、Overview

1.The automatic reporting system is the core system of ground communication services at civil aviation airports, The system sends, receives, and forwards civil aviation telegrams in AFTN and SITA formats, and automatically exchanges telegraph files between airport control, intelligence, meteorological, and other departments according to the prescribed telegraph level, routing, and time limit requirements.

2.The information processed by the system through storage and forwarding includes flight plans, flight dynamics, navigation information, airport weather conditions, route weather forecasts, and various information related to civil aviation flight safety.These telegraph data exchange information are directly related to flight safety and production efficiency, and are crucial for airport aviation security assurance.

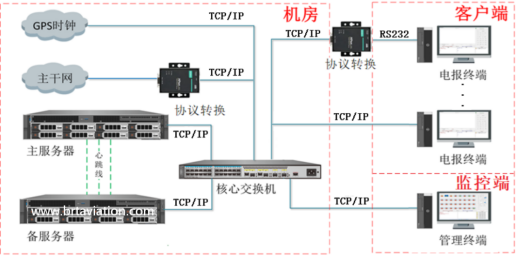

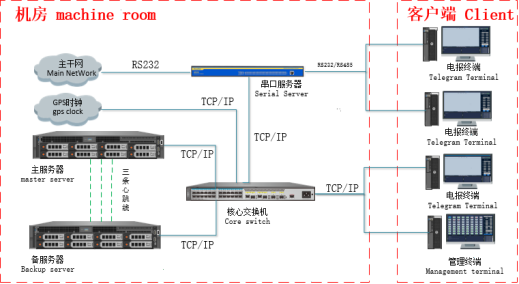

三、Structure

四、Highlights

1.Strong message processing capacity, processing more than 50000 messages per hour, and daily processing capacity not less than 1 million.

2.Telegram forwarding speed is fast, using TCP/IP interface to transmit terminal telegram messages, completing message forwarding in milliseconds.

3.The system has a large storage capacity, and telegram files should be retained for at least 180 days.

4.System upgrade is simple. When the 16 way is expanded to 32 /64 way, only the software version is upgraded and the switch and terminal equipment are added.

5.Automatic classification of messages, one click generation of various statistical reports.

6.High reliability, high stability, seamless master-slave switching technology for dual server hot backup, dual power supply guarantee.

7.Low investment, easy and simple maintenance, 24-hour technical and after-sales support.

五、Characteristic

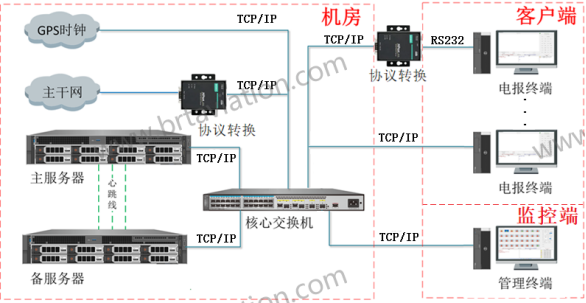

1.Network mode, simple structure: based on TCP/IP network structure, use advanced network communication technology to send and receive telegrams; It is composed of server, core switch, serial port server and telegraph terminal.

2.Universal equipment, easy to maintain: Universal network equipment, such as network switch, firewall, serial port server, etc., are used to facilitate later maintenance.

3.Dual machine hot standby, stable performance: dual server active standby mode is adopted. When one server fails, the system will automatically switch to the other server.

4.Real time processing and efficient operation: use an efficient database to save telegram files in a timely manner, providing a strong guarantee for the rapid forwarding and query of telegrams.

5.Graphical interface, easy to operate: Windows operating system is adopted, the management and transmission terminals are graphical interfaces, and icons are used to display the real-time status of channels or servers.

6.Sound prompt and timely alarm: provide graphic dialog box and alarm sound mode to timely remind maintenance personnel of faults or prompts to prevent omission.

六、Equipment List

No.	Name	Model	Qty/Unit	Remarks
1	Core Server	/	2 Set	Enterprise level master and standby servers ensure stable forwarding and efficient interaction of system communication data.
2	Accounting Server	/	1 Set	Enterprise level server, responsible for billing business data processing.
3	24 Port Switch	/	2 Set	Provide 24 gigabit access+4 10 gigabit uplink ports to support network data exchange.
4	Serial Server	/	1 Set	Support 8-way RS-232/RS-485 to Ethernet to realize serial port equipment networking communication.
5	KVM All-In-One Machine	/	1 Set	Support 8-way VGA signal access, realize centralized control of multiple equipment.
6	Telegraph Terminal	/	6 Set	It is deployed in the department that needs to receive and send messages, and is used for receiving and sending message information.
7	IP Access Gateway	/	1 Set	Realize the access and adaptation of IP equipment in different network environments, and ensure network interconnection.
8	Billing Computer Terminal	/	1 Set	It is used to operate and view billing related data and services, and assist the billing server.
9	Management Computer Terminal	/	1 Set	Monitor, configure and maintain the equipment and telegram receiving and sending.
10	Printer	/	1 Set	It is used to print various business documents and reports.
11	System Server Software	ASCS-MY16D	1 Set	Automatic message transfer system server, supporting system core services.
12	System Management Software	ASCS-MY16E	1 Set	Automatically transfer the message to the system management terminal, and realize system configuration, operation and maintenance and other management with Chinese and English interfaces.
13	System Client Software	ASCS-MY16F	1 Set	Automatic reporting system client, which can be used interactively by users through Chinese and English interfaces.
14	Communication Cabinet	/	1 Set	Standard cabinet, providing physical installation space for equipment.
15	Other Accessories	/	1 Set	Including crystal head, network cable, rolled tape and other basic wiring consumables.

七、Software Interface

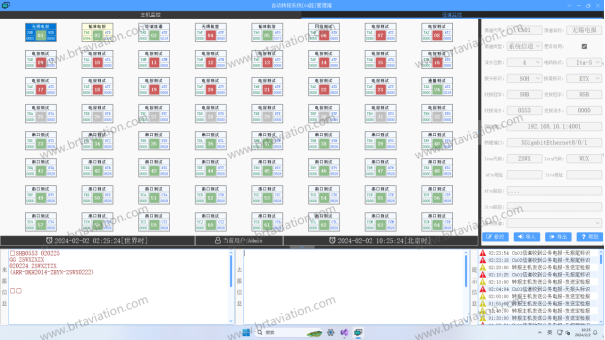

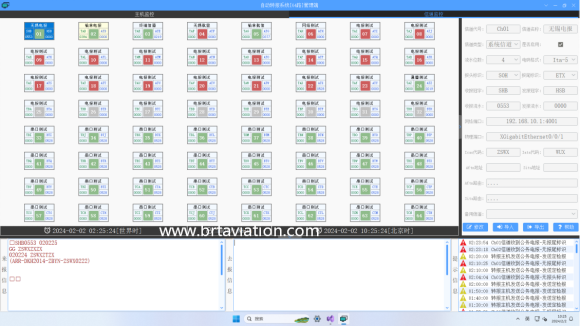

八、Product Selection

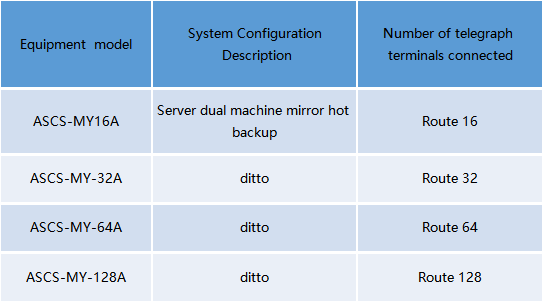

No,	Name	Model	System Configuration Description	Number of telegraph terminals
1	Automatic Message Transfer System	ASCS-MY16A	Server Dual Machine Mirror Hot Backup	Route 16
2	Automatic Message Transfer System	ASCS-MY32A	Server Dual Machine Mirror Hot Backup	Route 32
3	Automatic Message Transfer System	ASCS-MY64A	Server Dual Machine Mirror Hot Backup	Route 64
4	Automatic Message Transfer System	ASCS-MY128A	Server Dual Machine Mirror Hot Backup	Route 128

九、Mechanical

1. Weight：130kg.

2. Size: 120(H) * 60 (W) * 100 (D) cm, standard 22U chassis.

3. Primary Power：110～220V AC±15%，45～63 Hz，single phase.

十、Environmental

1. Temperature: Indoor -10°C～+50°C,.

2. Relative Humidity: Indoor 0～95% (non condensing).

3. Altitude: 0～4500m MSL.

4. Work Cycle: Continuous Unattended.

十一、Application Airport

Wudangshan airport in Hubei Province, Wugang airport in Hunan Province,China, etc.

十二、Standard

1.CAAC,The technical specification of civil aviation AFTN/SITA communication system，MH/T 4041-2014.

2.CAAC,The configuration specification of civil aviation AFTN/SITA communication system，MH/T 4050-2018.

3.ICAO,Annex 10, Aviation Telecommunications，Volume 3，Communication Systems，Fourth Edition，April 1985.

4.International Association for Aeronautical Communications SITA, Telegram Processing Standard.
